| Series name |
Frame size |
Breaking capacity | Rated current | Poles | Trip unit and protection | Residual current | Time delay |
| HDM3L | 25 | F | 250 | 3 | 3X0 | A | 1 |
| HDM3L | 12: 125A |
F: 50/30kA
|
16, 20, 25, 32, 40, 50, 63, 80, 100, 125A |
3: 3P B*: 4P |
3X0: Line protection |
A: 30/100/300 B: 100/300/500 C: 300/500/1000 |
0: No delay 1: 0.1/0.2/0.3s 2: 0.4/0.5/1s 3: 0.1/0.3/0.5s |
| 16: 160A | 100, 125, 140, 160A | ||||||
| 25: 250A | 160, 180, 200, 225, 250A | ||||||
| 40: 400A | F: 70/42kA | 200, 225, 250, 315, 350, 400A | |||||
| 63: 630A | F: 70/40kA | 400, 500, 630A |

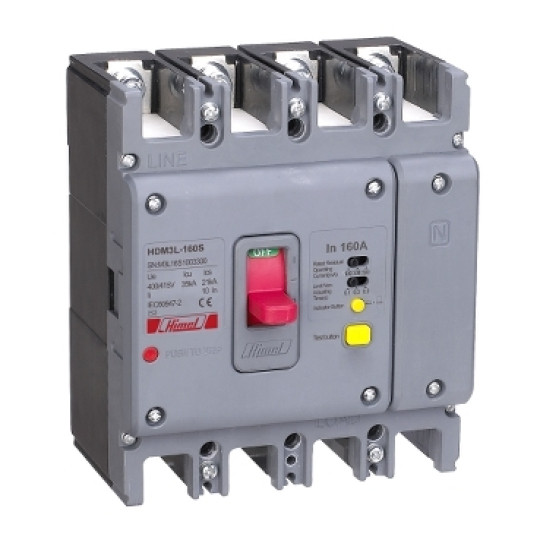

| Số pha (P) | 4 |
| Dòng cắt (kA) | 70 |
| Điện cảm (mA) | 100/300/500 |
| Dòng điện định mức (A) | Frame size (AF) | Time delay (s) | Mã |
| 200 | 400 | 0.1/0.2/0.3 | HDM3L40F200B3X0B1 |
| 225 | HDM3L40F225B3X0B1 | ||
| 250 | HDM3L40F250B3X0B1 | ||
| 315 | HDM3L40F315B3X0B1 | ||
| 350 | HDM3L40F350B3X0B1 | ||
| 400 | HDM3L40F400B3X0B1 | ||
| 400 | 630 | 0.1/0.3/0.5 | HDM3L63F400B3X0B3 |
| 500 | HDM3L63F500B3X0B3 | ||
| 630 | HDM3L63F630B3X0B3 |
